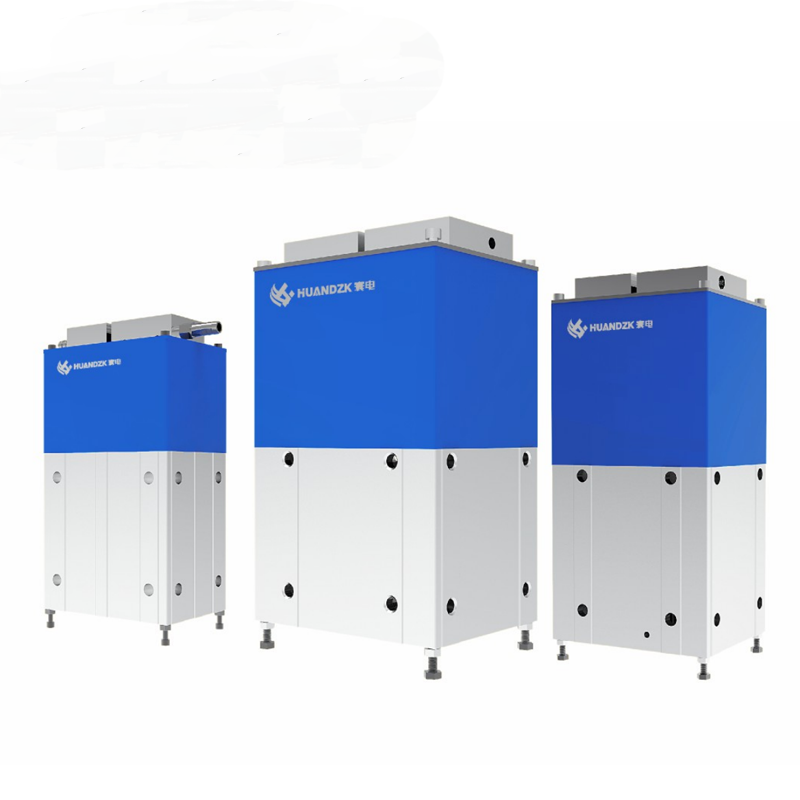

IDT High Frequency Welding Transformer
IDT series high frequency welding transformers are composed of rectifier modules, iron cores, windings, and water cooling cycles. They have the characteristics of low output secondary voltage, large current, and fast current rise, and support free switching of 1KHz/2KHz/3KHz/4KHz/5KHz operating frequencies.
- SCN CNC
- Guangdong,China
- 10days
- 200sets per month
- Information
IDT series high frequency welding transformers, designed for efficient and precise welding operations. These transformers are equipped with rectifier modules, iron cores, windings, and water cooling cycles, ensuring optimal performance and durability. With a low output secondary voltage, high current capacity, and rapid current rise, they are ideal for various welding applications.
The IDT series transformers support flexible operating frequencies, allowing for seamless switching between 1KHz, 2KHz, 3KHz, 4KHz, and 5KHz. This versatility enables users to adapt to different welding requirements with ease, enhancing productivity and quality in the welding process.
Whether you are working on resistance welding copper wire, utilizing a resistance weld control and power supply, or seeking an automatic spot welding machine, the IDT series transformer welder is a reliable choice. Trust in its performance, precision, and efficiency to meet your welding needs effectively.
Product Parameters:
| Model | IDT-925C | IDT-935C | IDT-945C |
| Supply Voltage | PWM 500V | PWM 500V | PWM 500V |
| Rated Power | 120KVA | 170KVA | 220KVA |
| Rated Primary Voltage | 500V | 500V | 500V |
| No Load Secondary Voltage | 9.1V | 11.3V | 11V |
| Max. Utilization Rate | 25000(5%) | 35000(10%) | 45000(10%) |
| Cooling Method | Water Cooling | Water Cooling | Water Cooling |
| Input Frequency | 1khz - 5khz | ||
| Transformer Volume Ratio | 55:1 | 44:1 | 45:1 |
| Dimension(L*W*H) | 268 * 160 * 12mm | 334 * 160 * 125mm | 343 * 146 * 106mm |
| Weight | 19KG | 19.5KG | 30KG |
