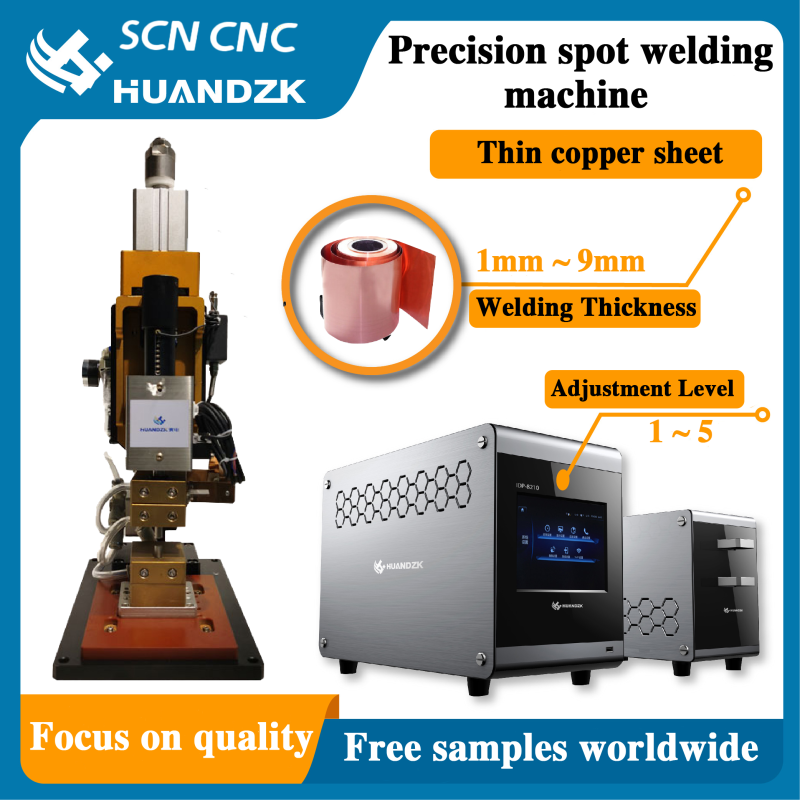

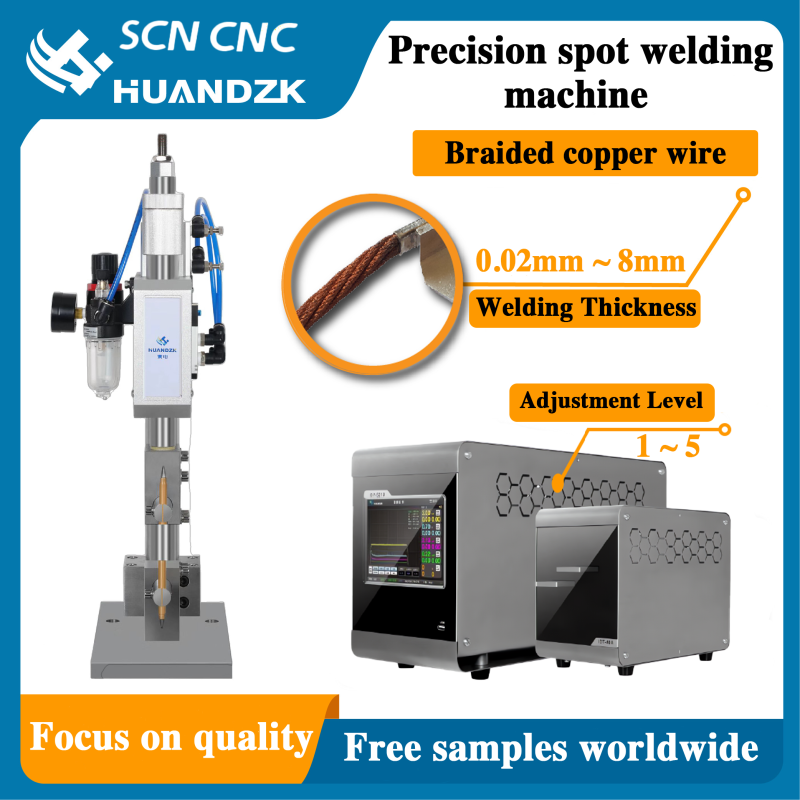

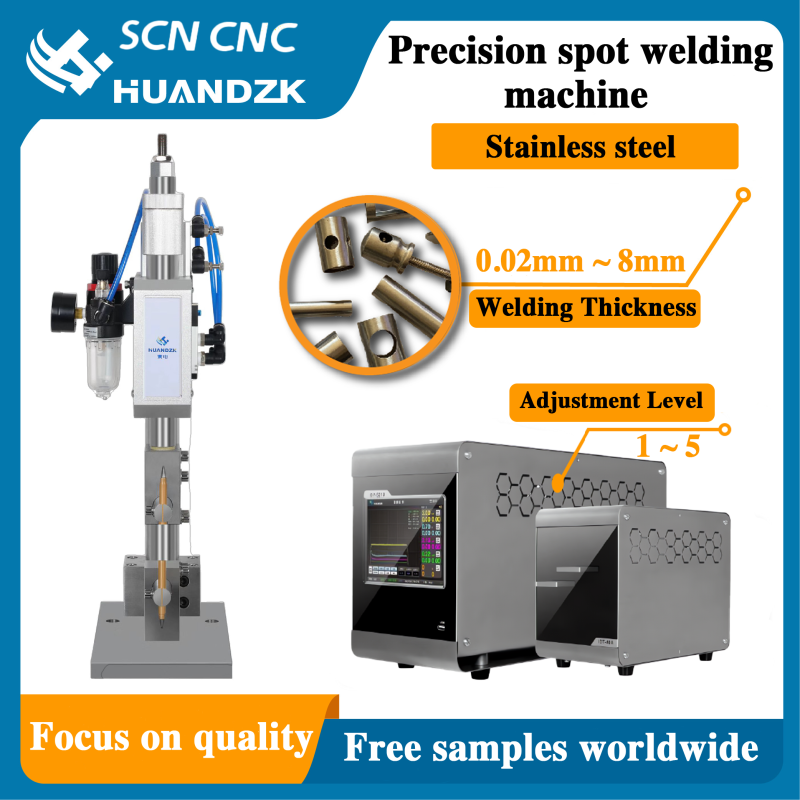

Small stainless steel automatic foot-operated spot welding machine for Jewelry with gold clasp and Eyeglass Frames and LED strip

High control accuracy (0.2 milliseconds), low heat generation, little damage to the workpiece, good solder joint appearance, high welding tensile strength, strong stability, and low defective rate

  • SCN CNC
  • Guangdong,China
  • 7days
  • 200sets/month
  • Information

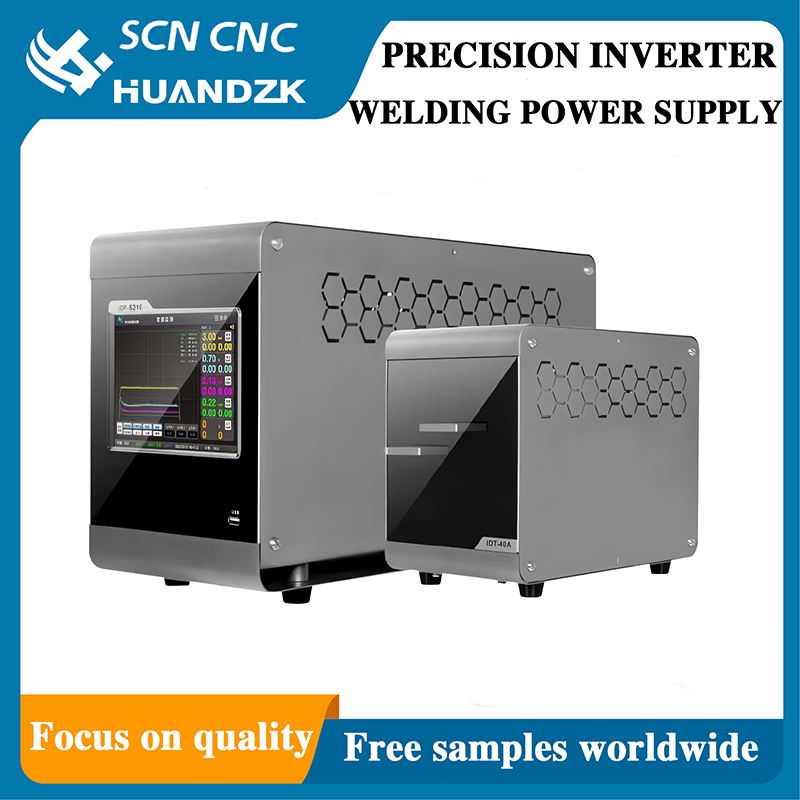

Our high-efficiency resistance welding power supply system is designed for precision welding of copper sheets and other metal materials. It is a welding solution that integrates advanced technology, stable performance and excellent efficiency. This welding power supply adopts advanced inverter technology, which can provide stable and accurate current output in an instant, ensuring uniform heat distribution during copper sheet welding, and firm and beautiful welds.


With the intelligent resistance welding controller, users can easily adjust welding parameters, such as current size, welding time, etc., to meet the welding needs of copper sheets of different thicknesses and materials. The controller has built-in multiple protection mechanisms to effectively prevent abnormal conditions such as overload and short circuit, ensuring stable operation of equipment and safety of operators.


As the core execution unit of the system, the spot welder has fast response and precise control, so that every welding can achieve the ideal welding effect. At the same time, the resistance welding monitor we provide can monitor the key parameters of the welding process in real time, such as welding current, voltage and temperature changes, to help users understand the welding quality in a timely manner and ensure that the product meets high standards.


In summary, this resistance welding power supply system has become the preferred solution in the field of copper sheet welding with its high efficiency, stability and intelligence. It is widely used in many industries such as automobile manufacturing, electronics and electrical appliances, hardware processing, etc., helping companies improve production efficiency and product quality.



ModelIDP-5210IDP-8210
Supply Voltage/V3-phase 380V (50/60Hz)
Control frequency/kHz1kHz/2kHz/3kHz/4kHz/5kHz
Max. output current/A40008000
Rated power/KVA12.425
Control methodConstant pulse width/peak primary/secondary current/secondary voltage/power/hybrid control
Number of welding norms32 group norms
Welding time settingPre-pressure time0-9999ms
Pressurization time0-9999ms
Slow rise 1 time0-9999cyc
Welding 1 time0-9999cyc
Slow down 1 time0-9999cyc
Cooldown0-9999cyc
Slow rise 2 time0-9999cyc
Welding 2 time0-9999cyc
Slow down 2 time0-9999cyc
Slow rise 3 time0-9999cyc
Welding 3 time0-9999cyc
Slow down 3 time0-9999cyc
Holding time0-9999ms
Rest period0-9999ms
Finish time0-9999cms
Number of cycles0-9
Cooling methodair-coolingwater cooling
Communication methodRS-485/RS-232/Ethernet
Welding transformersIDT-40AIDT-80A
